Gigabyte

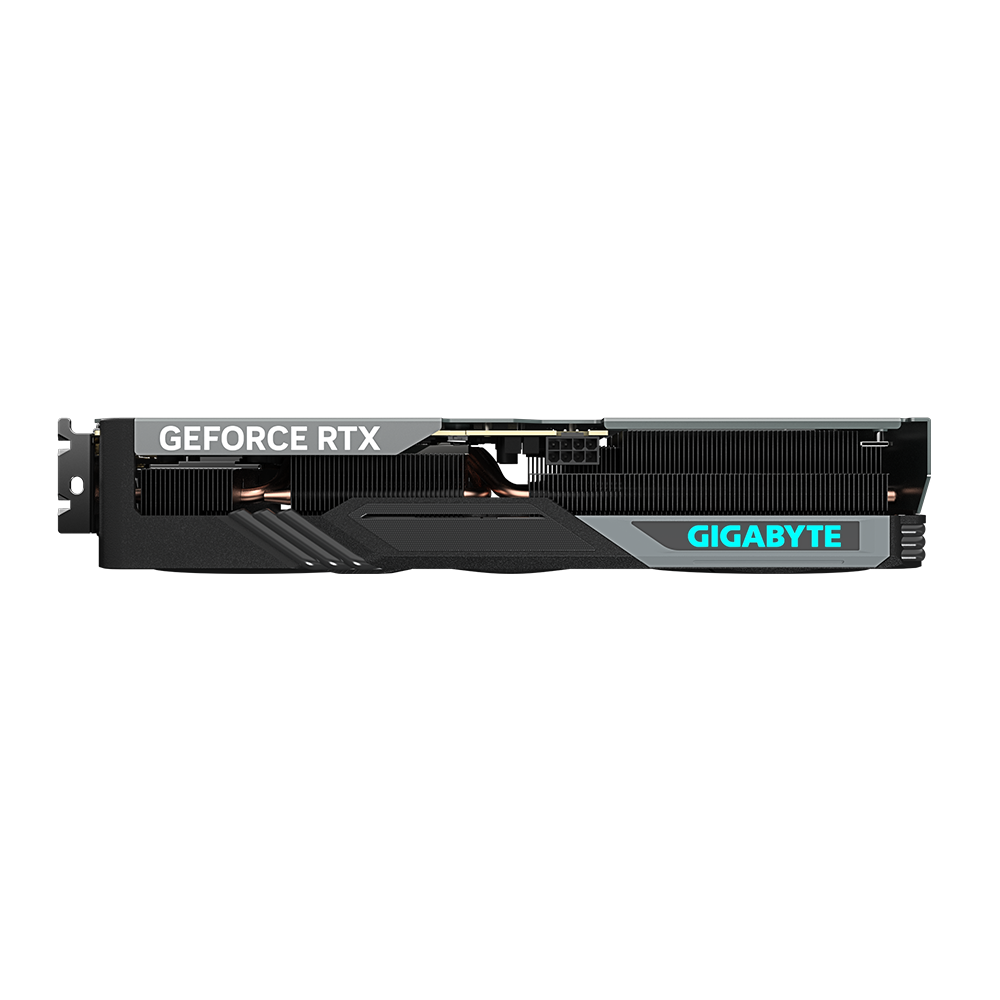

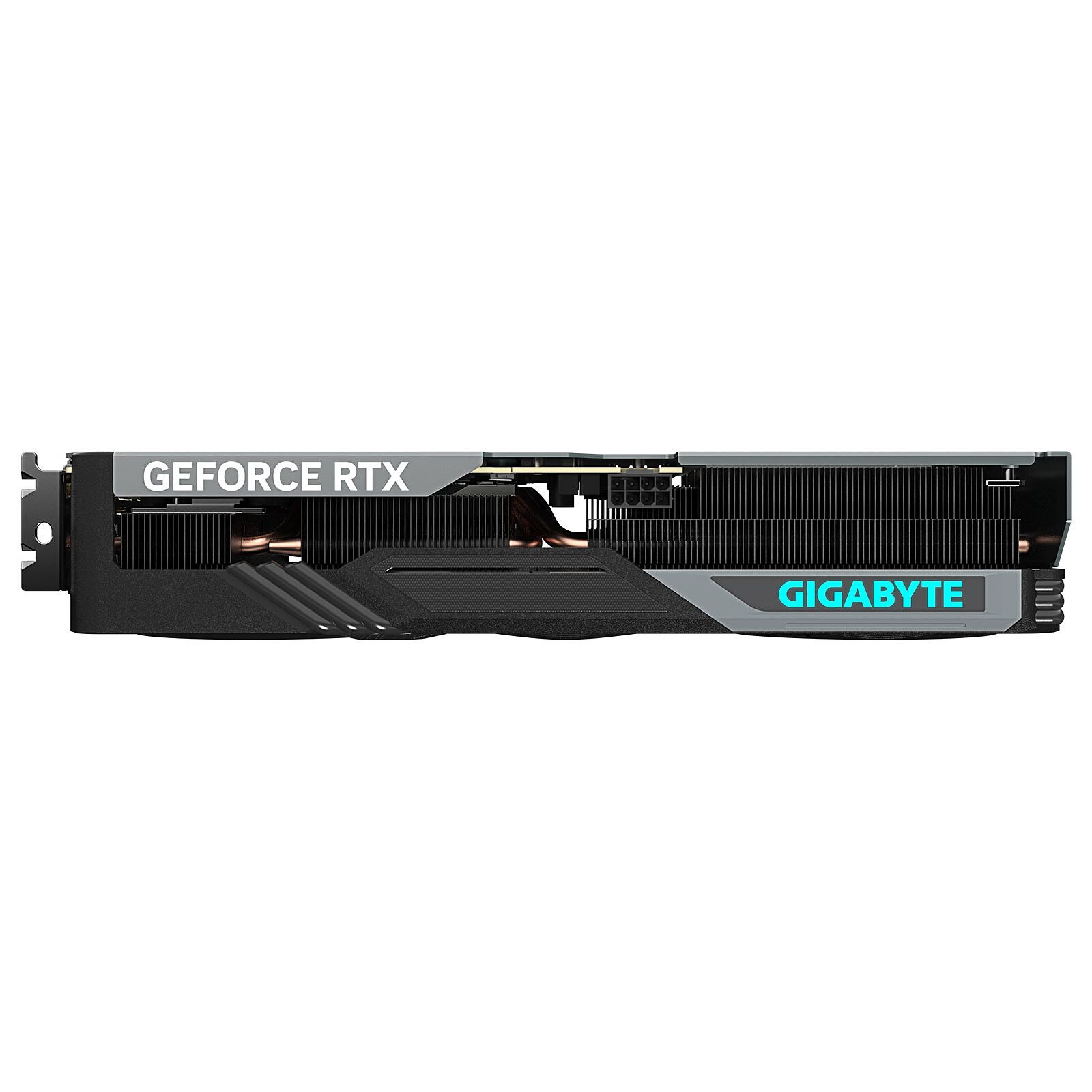

GeForce RTX 4060 Ti GAMING OC 8G
A triple-fan implementation of the RTX 4060 Ti. Provides excessive cooling capacity for the 160W TDP card.
£398.99
Key Properties
Capacity(GB/W)8 GB/W
CompatibilityPCI-E 4.0 (Card Bus), ATX (PCB Form)
Component TypeGPU

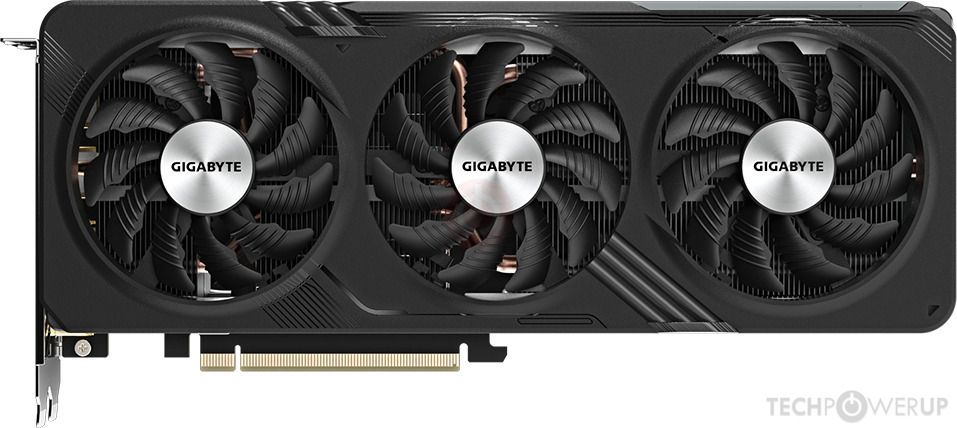

Cooling DesignTriple-fan
Dimensions(mm)281 x 117 x 53 mm (L x W x H)
Encoder Decoder Features-1
Form FactorATX
Gpu ArchitectureNVIDIA Ada Lovelace
Gpu ModelNVIDIA GeForce RTX 4060 Ti
Interface StandardPCIe 4.0, DisplayPort 1.4a (2x), HDMI 2.1a (2x), 8-pin power connector (1x)
ManufacturerGigabyte
Max Supported Displays4
Memory Bus Width128
Pcie InterfacePCIe 4.0 x8
Performance SpecCore clock: 2580 MHz (reference: 2535 MHz), CUDA cores: 4352, Memory clock: 18 Gbps, Memory bus: 128-bit, DirectX 12 Ultimate, OpenGL 4.6, Digital max resolution: 7680x4320
Power Draw Tgp160
Power Requirements(W)500 W
Price(GBP)398.99 GBP
Ray Tracing SupportYes
Thermal DesignWINDFORCE cooling system (3x 80mm fans; 4 composite copper heat pipes directly touch GPU)
Upscaling TechnologyNVIDIA DLSS
Vram Capacity8
Vram TypeGDDR6
