Intel

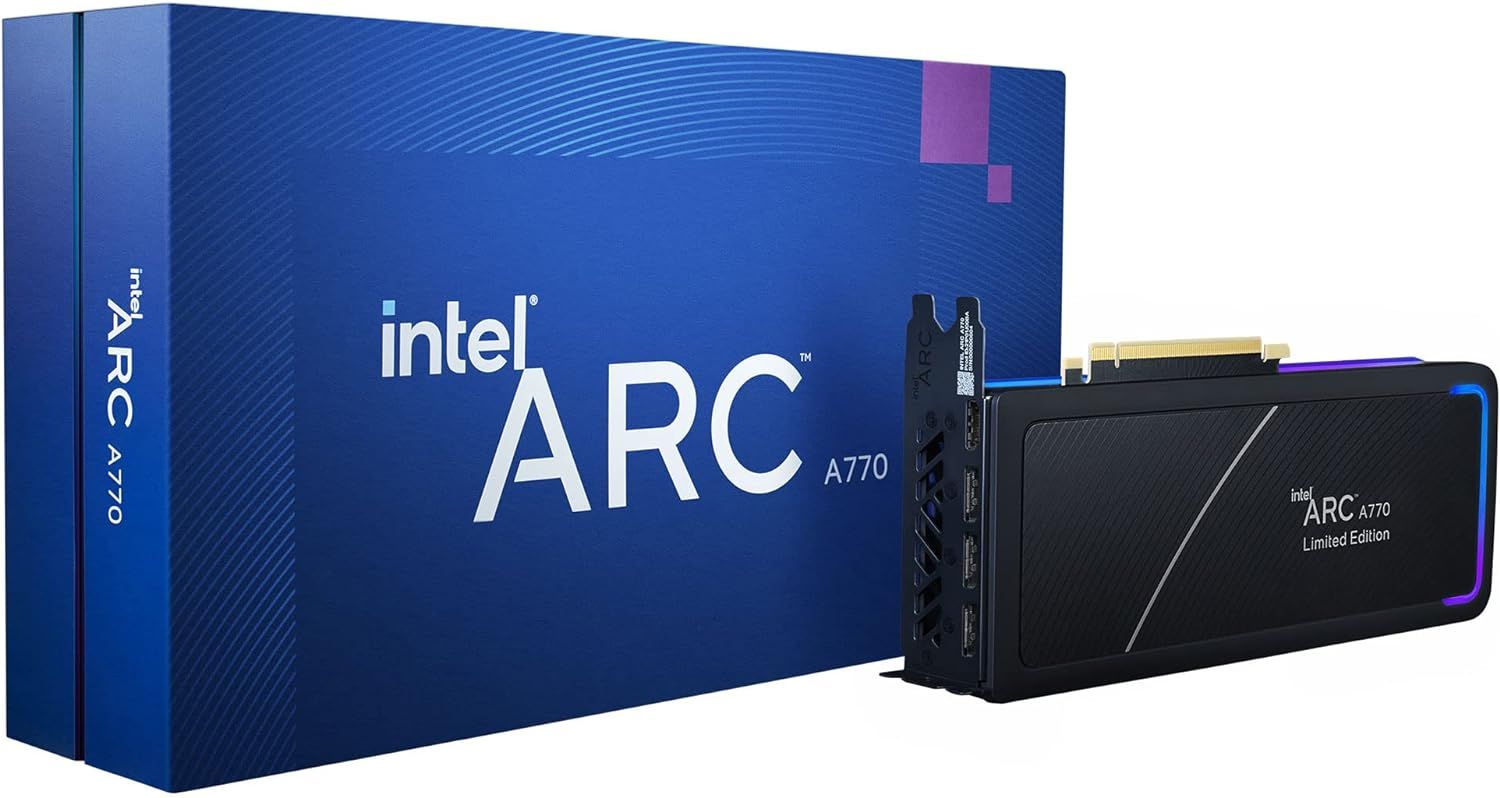

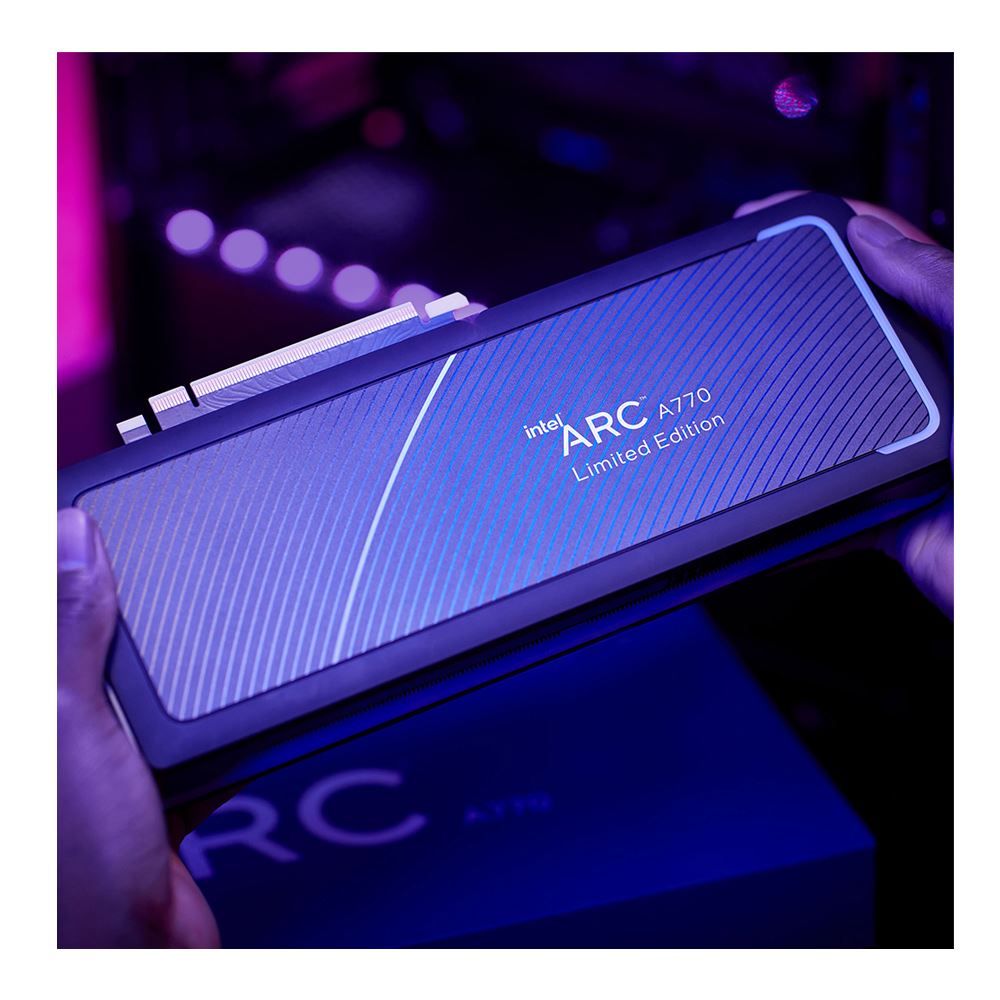

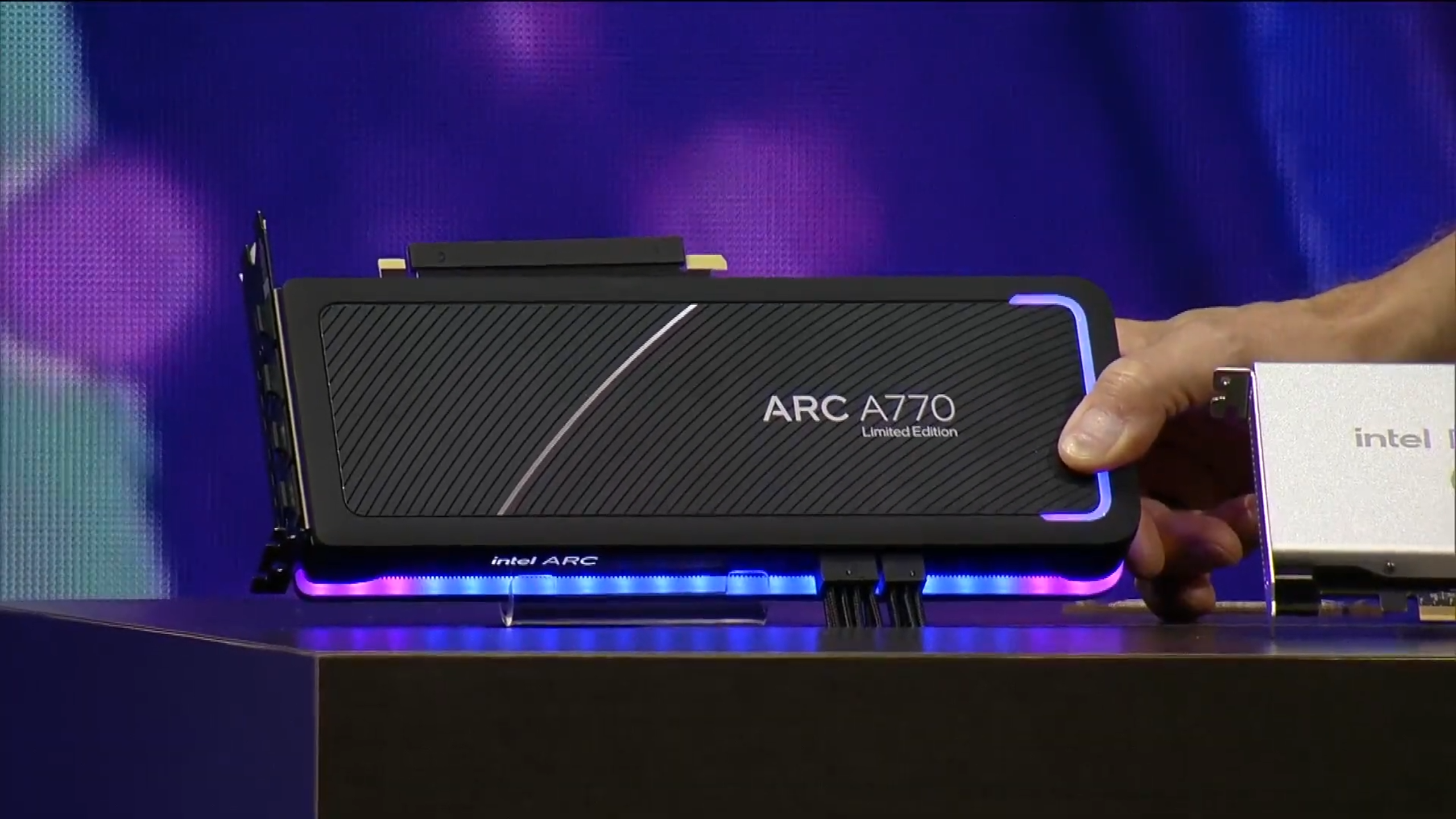

Arc A770 Limited Edition 16GB GDDR6
Intel's flagship desktop GPU, offering 16GB of VRAM and impressive productivity performance, especially in video editing.
$279.99
Key Properties
Boost Clock2100
Capacity(GB/W)16 GB/W
Card Length267
CompatibilityPCIe 4.0 x16, Desktop, GDDR6, 256-bit memory interface
Component TypeGPU
Cooling DesignOpen-air dual-fan
Dimensions(mm)Length (without I/O bracket): 268.6 mm, Length (with I/O bracket): 279.9 mm, Width (with shroud): 98.4 mm, Height (with shroud): 40.81 mm
Display Outputs1
Encoder Decoder Features1
Form FactorDual-slot
Form Factor Slot Width2
Gpu ArchitectureIntel Alchemist
Gpu ModelIntel Arc A770
Interface StandardPCIe 4.0 x16, HDMI 2.1, DisplayPort 2.0, eDP 1.4, DP 2.0 up to UHBR 10
ManufacturerIntel
Max Supported Displays4
Memory Bandwidth560
Memory Bus Width256
Pcie InterfacePCIe 4.0 x16
Performance SpecBase clock: 2100 MHz, Boost clock: 2400 MHz, Xe HPG architecture (DG2-512), Ray tracing enabled (Ray Tracing Units: 32), GPU peak TOPS (Int8): 262
Power Connectors1
Power Draw Tgp225
Power Requirements(W)225 W
Price(USD)279.99 USD
Ray Tracing SupportYes
Recommended Psu Wattage600
Upscaling Technology1
Vram Capacity16
Vram TypeGDDR6
Warranty Length3
Warranty Period(months)36 months
