Intel

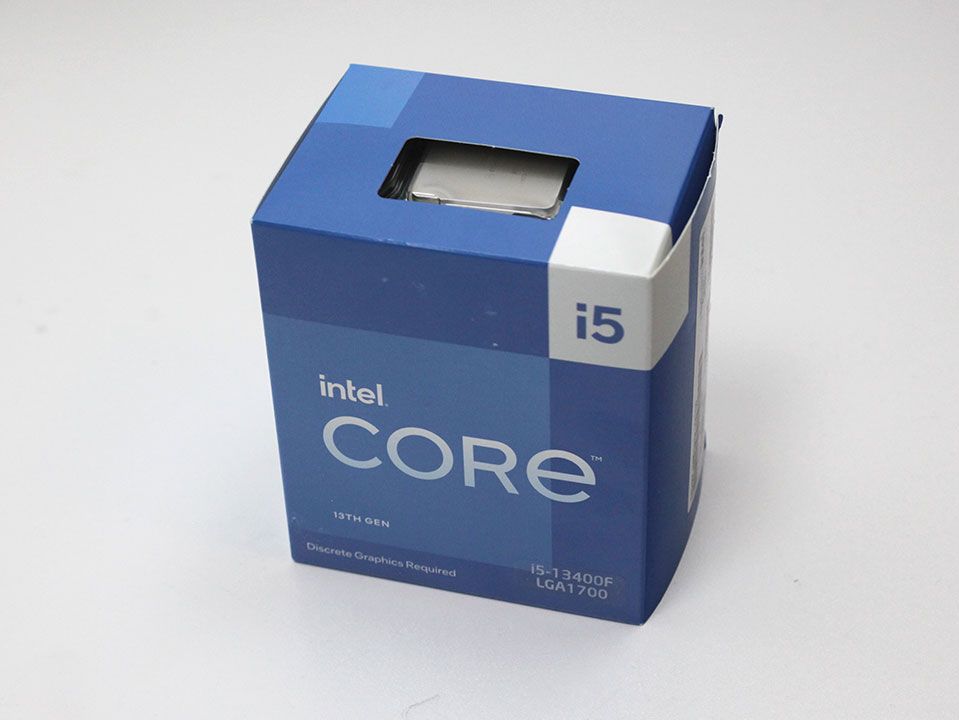

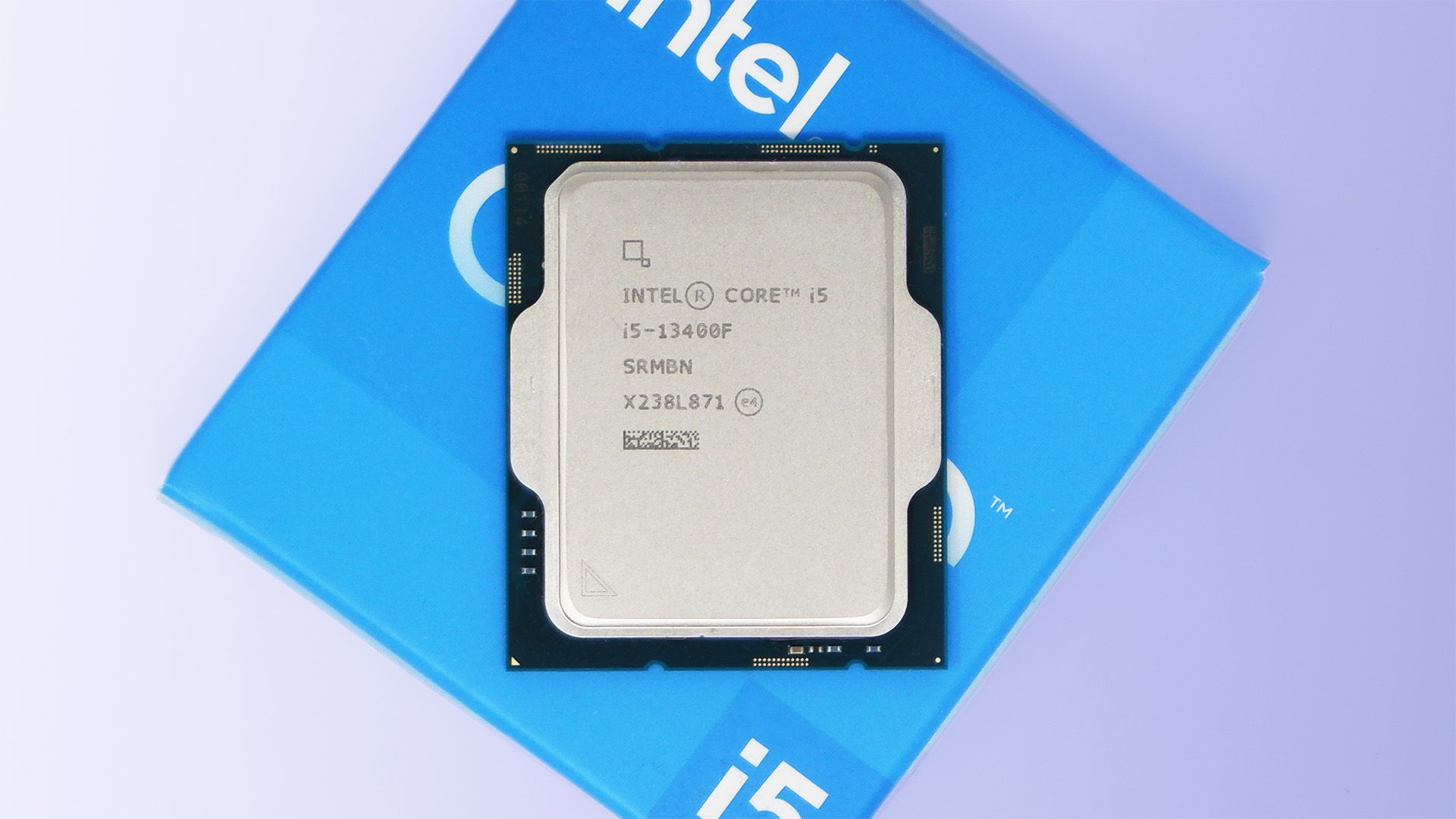

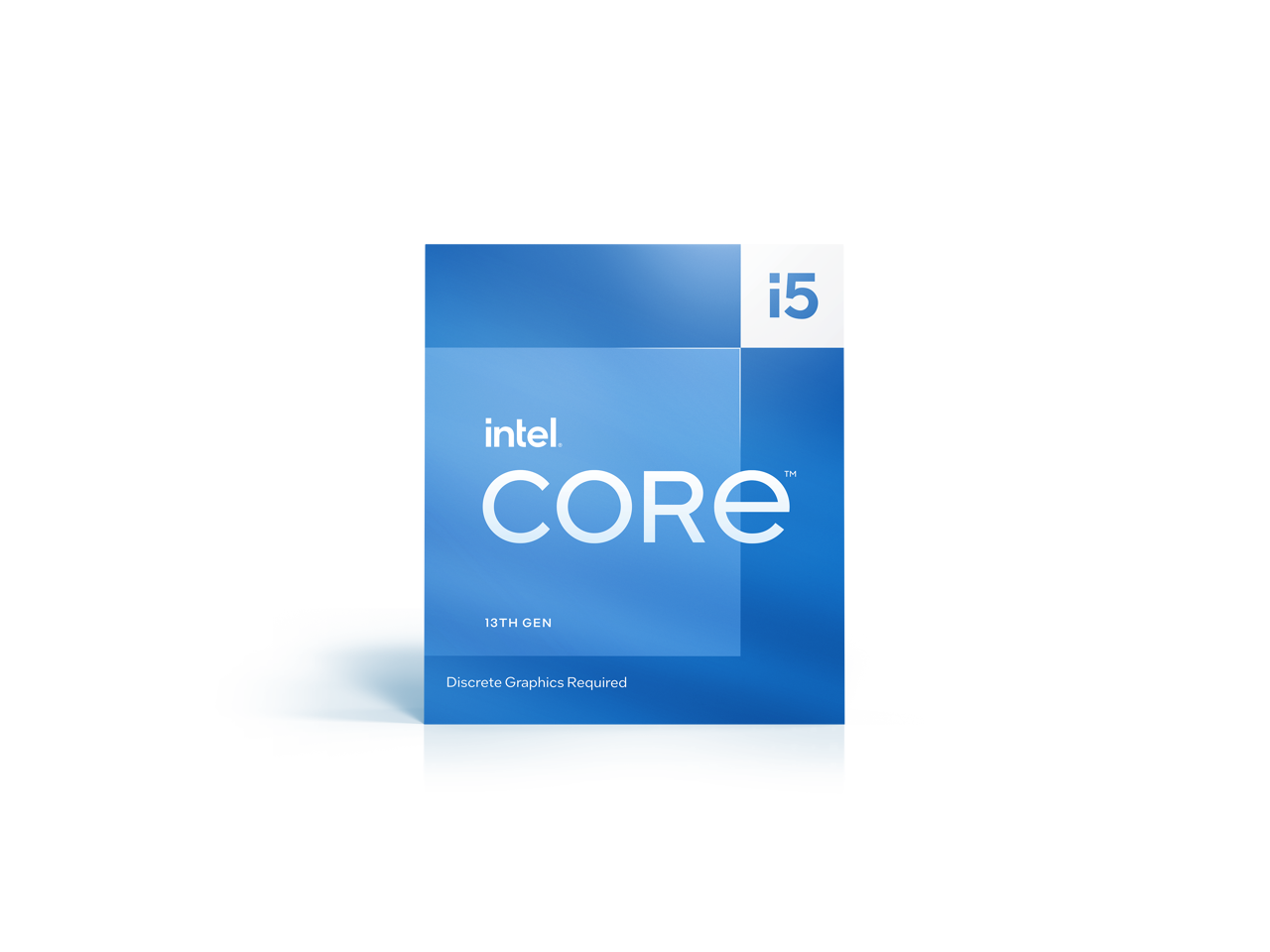

Intel Core i5-13400F
A solid 10-core locked CPU that serves as a reliable middle ground for productivity and gaming.
$134.08
Key Properties
ArchitectureRaptor Lake-S (13th Gen Core)
Base Clock2.5
Base Clock Speed(GHz)2.5 GHz
Cache L320
Cache Size(MB)20 MB
Capacity192
Compatibility['LGA1700 (FCLGA1700)', 'DDR5-4800 MT/s support', 'DDR4-3200 MT/s support', 'PCIe 5.0 and 4.0']
Component TypeCPU
Core Count(cores)10 cores
Cpu Cooler IncludedTrue
Cpu Microarchitecture GenerationIntel 13th Gen Core (Raptor Lake)
Cpu SocketLGA1700
Dimensions['45.0 x 37.5 mm (package dimensions)']
Form FactorFCLGA1700 (LGA1700 package)
Included CoolerYes
Integrated GraphicsNo
Interface Standard['PCI Express 5.0', 'PCI Express 4.0', 'DMI 4.0 (Direct Media Interface)']
Launch Date2023-01
ManufacturerIntel
Manufacturing Process10 nm
Max Boost Clock4.6
Max Boost Clock Speed(GHz)4.6 GHz
Max Memory Speed4800
Max Turbo Power148
Memory Channels2
Memory SupportUp to DDR5 4800 MT/s and up to DDR4 3200 MT/s
Memory Type Support3200
Overclocking SupportNo
Pcie Lane Count20
Pcie VersionPCIe 5.0, 4.0
Pci Express VersionPCI Express 5.0 and 4.0
Performance Spec['Max Turbo Frequency: 4.60 GHz', 'Processor Base Power: 65 W', 'Maximum Turbo Power: 148 W', 'Intel Smart Cache: 20 MB', 'Total L2 Cache: 9.5 MB', 'Max Memory Bandwidth: 76.8 GB/s', 'Max Memory Size: 192 GB']
Power Requirements148
Price(USD)134.08 USD
Process NodeIntel 7
SocketLGA1700
Tdp Processor Base Power65
Thermal Design['Processor Base Power (TDP): 65 W', 'Maximum Turbo Power: 148 W', 'Max Operating Temperature (TJUNCTION): 100 °C']
Thermal Design Power(W)65 W
Thread Count(threads)16 threads
Unlocked Multiplier OverclockingFalse
Warranty Period36
