NVIDIA

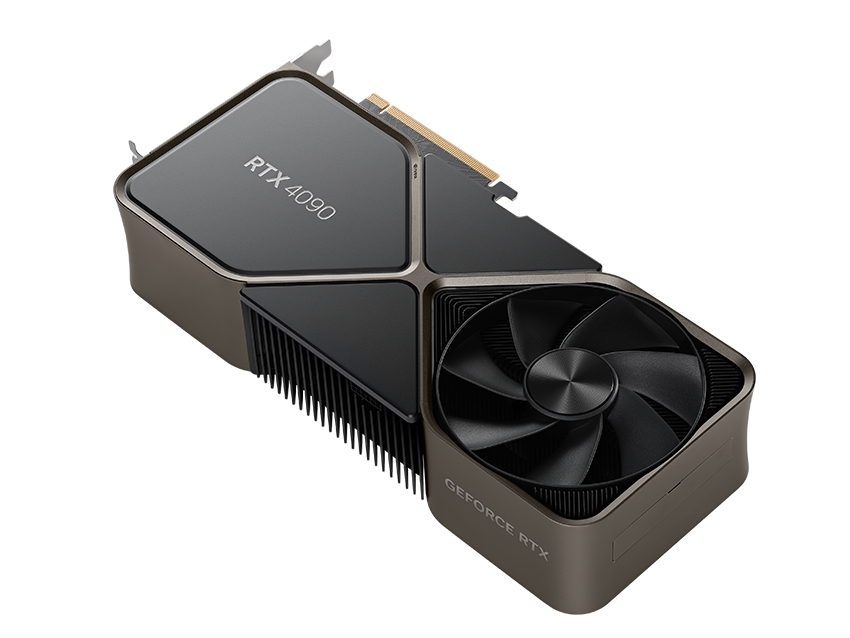

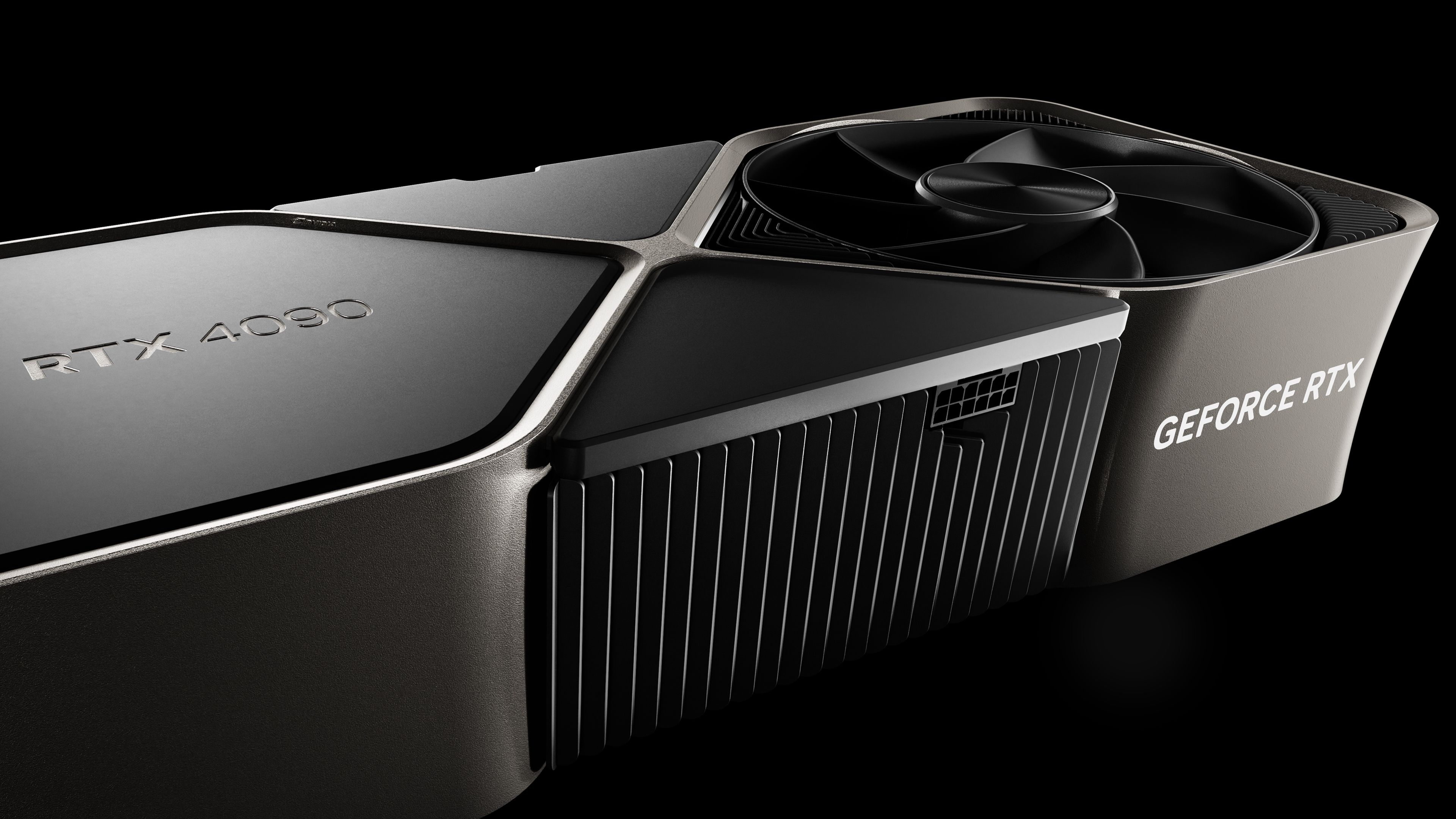

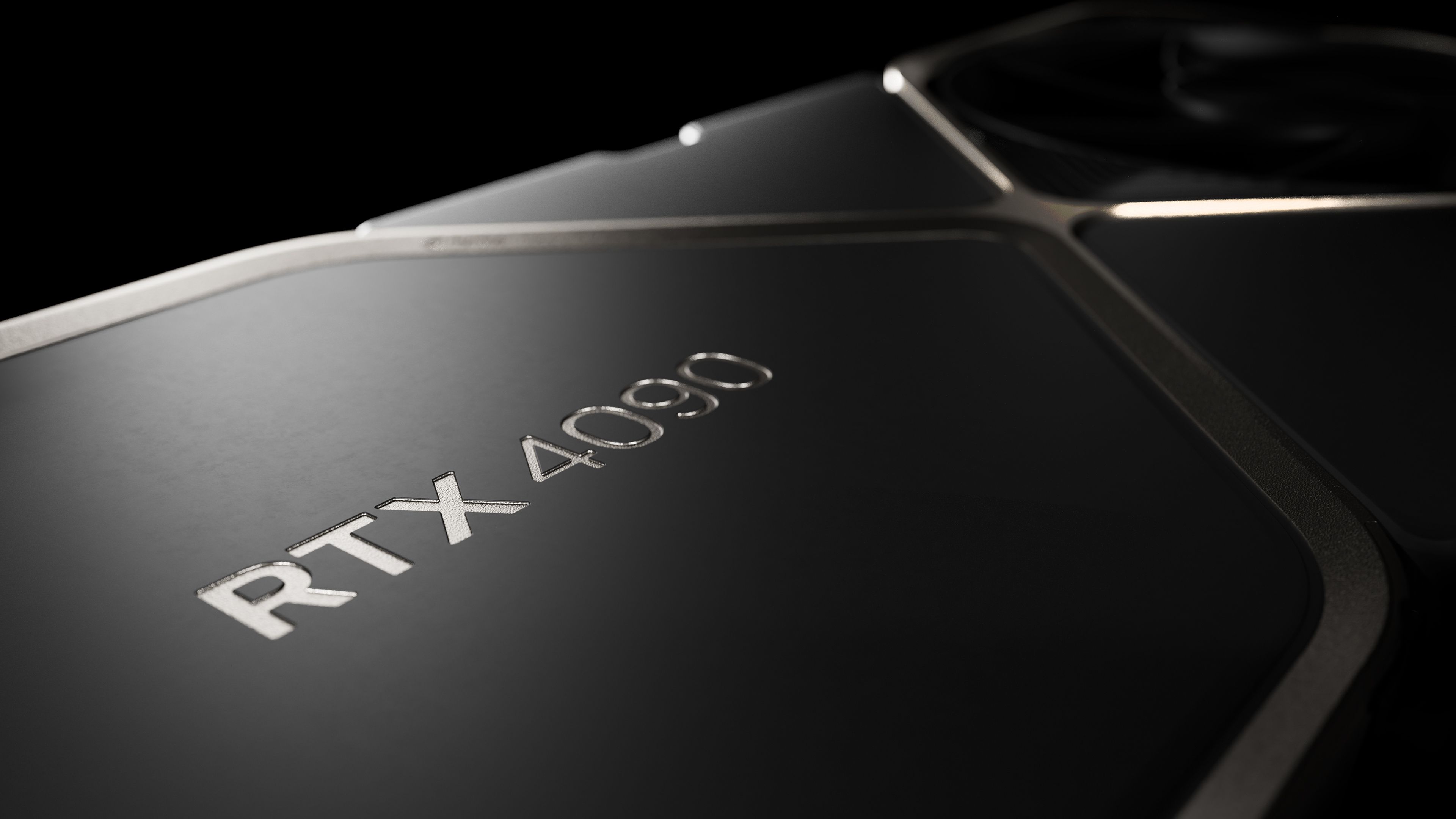

GeForce RTX 4090 Founders Edition
The official reference design of the RTX 4090 featuring an elegant dual-axial flow-through cooler. Sets the standard for Ada Lovelace 4K capability.
$1,699.99
Key Properties
Capacity(GB/W)24 GB/W
CompatibilityPCI Express Gen 4, PCIe x16
Component TypeGPU
Cooling DesignDual-axial flow-through cooler
Dimensions(mm)Length: 304 mm, Width: 137 mm, Height: 61 mm
Form Factor3-slot graphics card (61mm)
Gpu ArchitectureAda Lovelace
Gpu ModelNVIDIA GeForce RTX 4090
Interface StandardPCIe 4.0 x16, HDMI 2.1, DisplayPort 1.4a
ManufacturerNVIDIA
Memory Bus Width384
Pcie InterfacePCIe 4.0 x16
Performance Spec16384 NVIDIA CUDA Cores, Boost clock: 2.52 GHz, Base clock: 2.23 GHz
Power Draw Tgp450
Power Requirements(W)450 W
Price(USD)1,699.99 USD
Ray Tracing SupportYes
Thermal DesignMaximum GPU temperature: 90 C
Upscaling Technology-0.00019253723381503488
Vram Capacity24
Vram TypeGDDR6X
Warranty Period(months)12 months
