NVIDIA

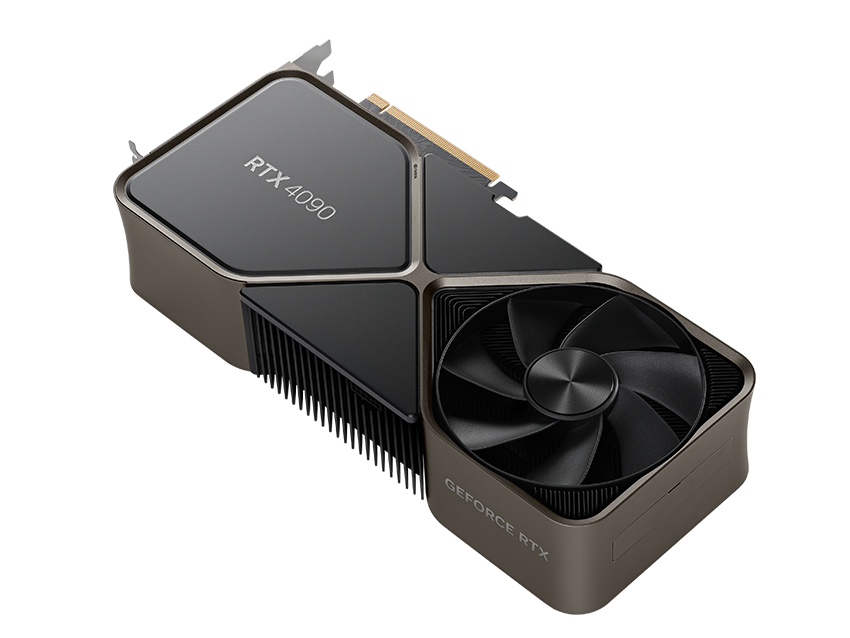

GeForce RTX 4090 Founders Edition
The 'gold standard' reference design from NVIDIA, featuring a unique dual-axial flow-through cooling design and a compact, premium aesthetic.
$1,699.99
Key Properties
Boost Clock2520
Capacity(GB/W)24 GB/W
Card Length304
CompatibilityPCI Express 4.0 x16, Resizable BAR supported
Component TypeGPU
Cooling DesignDual-axial flow-through cooling design
Dimensions(mm)Length: 304 mm, Width: 137 mm, Slot width/slots: 3-slot (61 mm)
Display Outputs1
Encoder Decoder Features1
Form Factor3-slot dual/Founders Edition reference design (ATX class)
Form Factor Slot Width3
Gpu ArchitectureNVIDIA Ada Lovelace
Gpu ModelNVIDIA GeForce RTX 4090
Interface StandardPCIe Gen 4, HDMI 2.x (HDMI(2)), DisplayPort(3), NVIDIA NVENC: 2x 8th Generation, NVIDIA NVDEC: 5th Generation
ManufacturerNVIDIA
Max Supported Displays4
Memory Bandwidth1008
Memory Bus Width384
Pcie InterfacePCIe 4.0 x16
Performance SpecCUDA cores: 16384, Boost clock: 2.52 GHz, Base clock: 2.23 GHz, Shader throughput (listed as): Ada Lovelace 83 TFLOPS, Ray tracing cores: 3rd Generation, Tensor cores (AI): 4th Generation 1321 AI TOPS, Memory: 24 GB GDDR6X, Memory interface width: 384-bit, PCIe: PCI Express Gen 4
Power Connectors1
Power Draw Tgp450
Power Requirements(W)450 W
Price(USD)1,699.99 USD
Ray Tracing SupportYes
Recommended Psu Wattage850
Thermal DesignMaximum GPU temperature: 90 C
Upscaling Technology1
Vram Capacity24
Vram TypeGDDR6X
Warranty Length3
Warranty Period(months)12 months
